SPN01-L4-2153-HZ-FAD

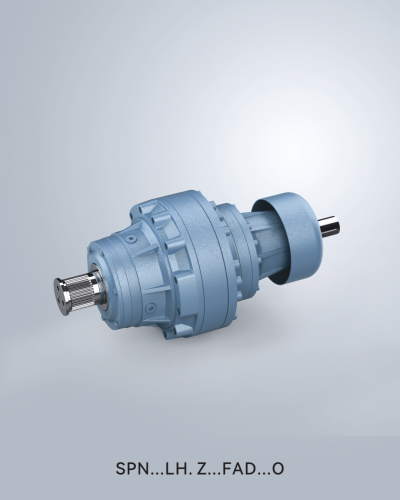

SPN01-L4-2153-HZ-FAD , Planetary gear / Size 01 , Ratio 2153/1 , Output torque : 1720 N.m / Heavy solid splined shaft / Solid input shaft with fan ,


SPN series basic features are:

**18 size:
-output torque up to 500,000 Nm
-output power up to 450 kw
-ratios from 3.5:1 to 3000:1

**Modular design:
-in-line with 1 to 4 reductions
-right angle (spiral bevel gear set into first stage) with 2 to 4 reduction.
-Flange-mounted, foot-mounted and shaft-mounted output
-Output shafts with keyway, splined, splined hollow shafts, hollow shafts for shaft-mounting with shrink disc

**Input adaptors for:
-electric motors to IEC standards design B5
-input shafts
-servomotors
-hydraulic motor setting

**Installation accessories:
-flanges
-pinions
-splined bars
-shrink discs

**More design features:
-high ratio of transmissible torque to overall dimensions
-high radial and axial load capacity of output shafts thanks to tapered roller bearings fitted on the H versions
-high efficiency
-inner parts are connected using grooved sections instead of tabs
-planetary gears of reduction stages mounted to floating holders to ensure maximum load distribution among planetary gears
-housing from ductile cast iron
